My Adventures with Foucault Testing

Tester

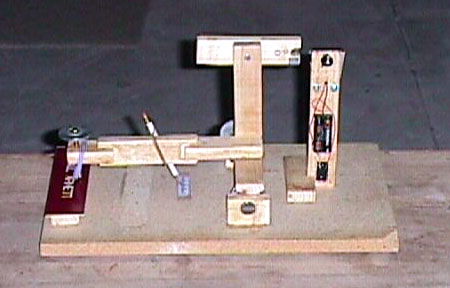

To evaluate the figure of the mirror I'm grinding, I decided to build a little tester. I took the basic design from Texereau and built a cheap and dirty version. Actually, I built 2 1/2 of them:

Mark I never saw the light of day
Mark II
Mark III

Screen

To do quantitative measurements one also needs a Couder screen or something similar.

Results

The hard part of all this is interpreting the results. Here are a bunch of Foucault shadowgrams of my mirror at various stages.
