My First Dob


Here are a couple of snapshots of my new 10" f/6 Dob at various stages of construction (see here for a little about the mirror):

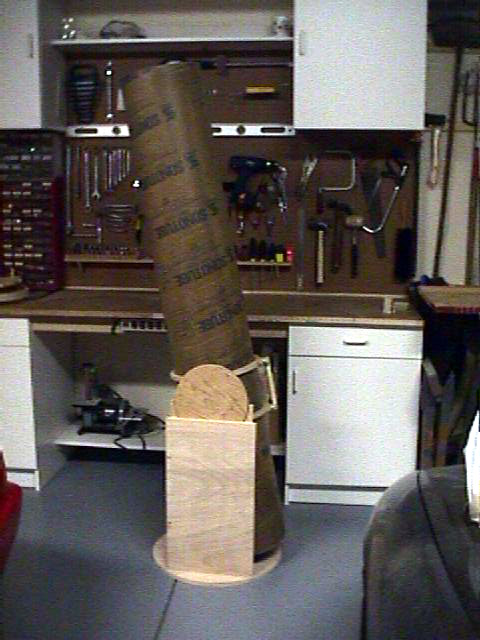

1999 Apr 6:

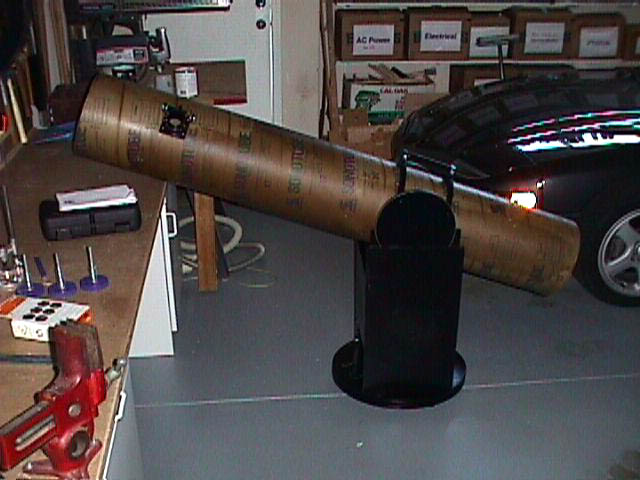

1999 Apr 23

1999 Apr 27: First Light (with no Al coating)

Quick snapshot with a Sony Mavica handheld to the eyepiece:

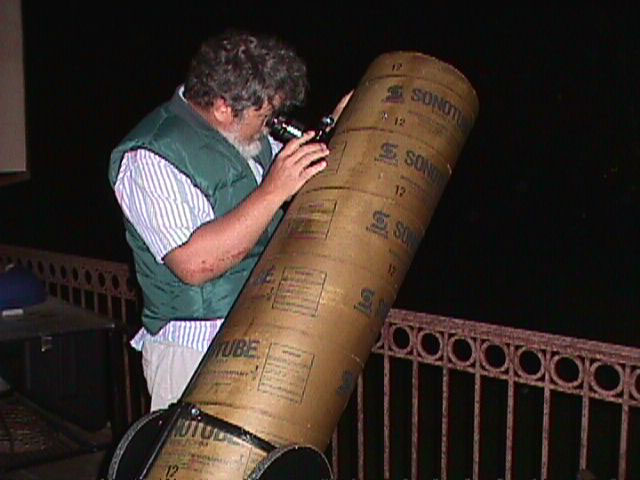

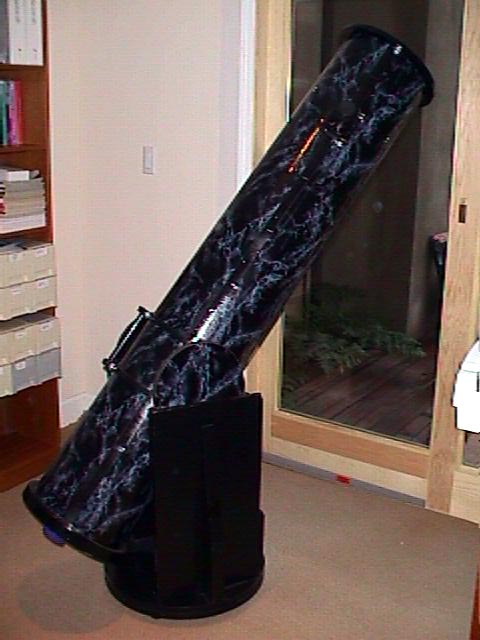

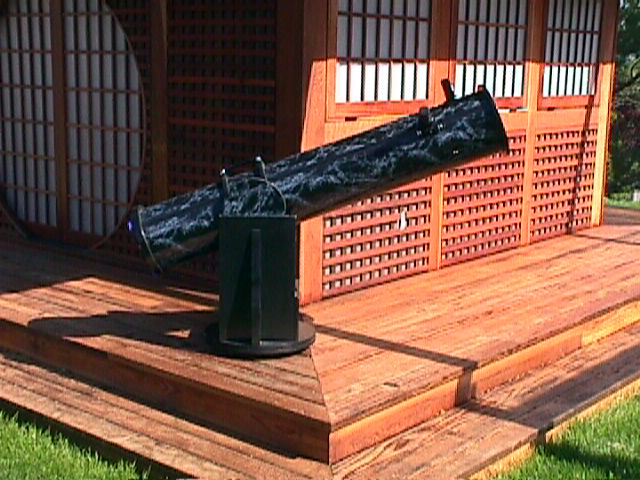

The finished product


The various pieces:

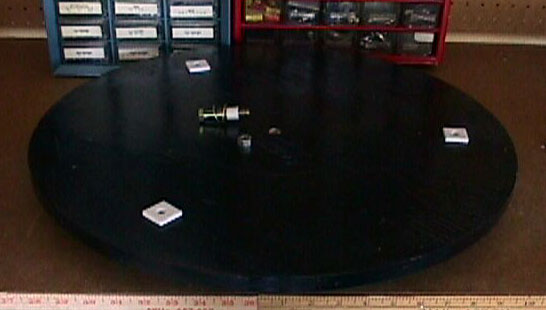

Ground board and center bolt; teflon pads are directly above the feet; the center bolt fastens to a T-nut in the ground board and turns on a nylon bushing in the rocker bottomgroundboard.jpg (30k)

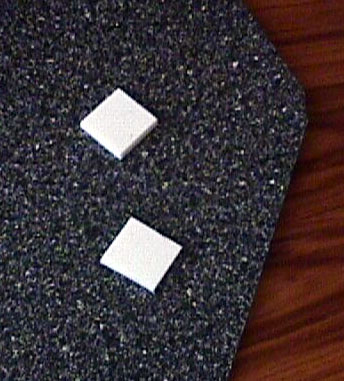

EbonyStar and Teflon bearing material from CEObearings.jpg (50k)

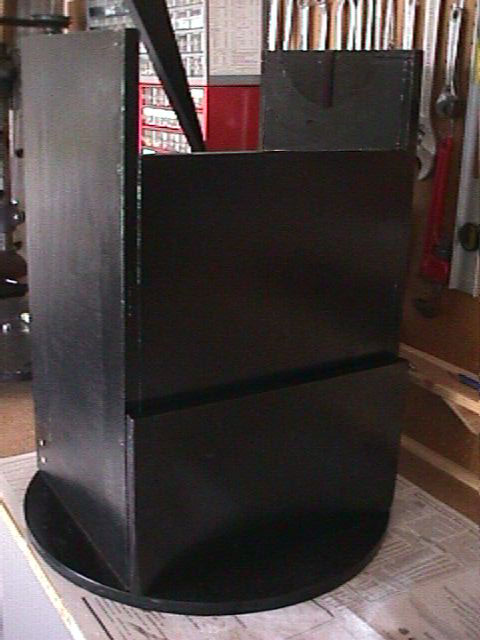

Partially assembled rocker box; the addition of additional braces below GREATLY increased its stiffnessrocker.jpg (55k)

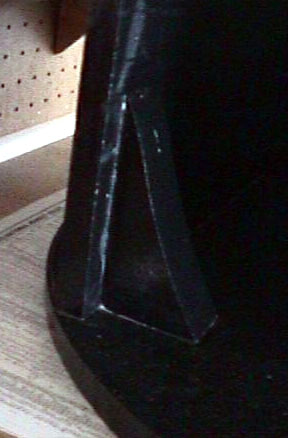

Inner side brace; screwed and glued to side and bottombraceinner.jpg (26k)

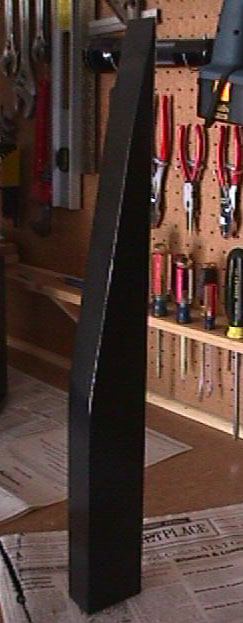

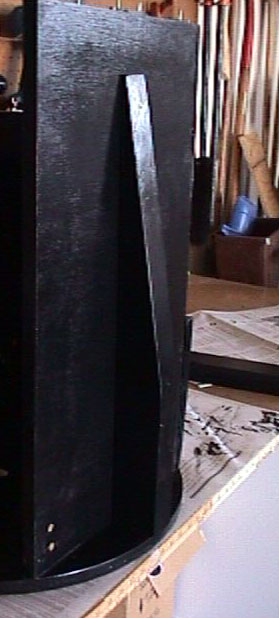

Outer side brace; screwed and glued to side and bottombrace.jpg (37k)

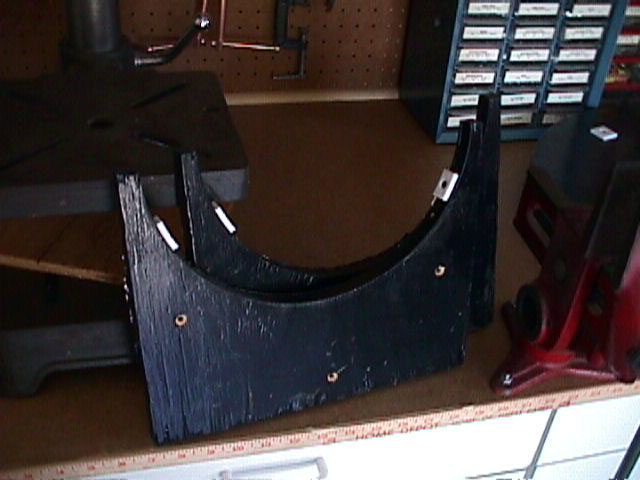

Cradle boards (fixed part of altitude bearings)cradles.jpg (52k)

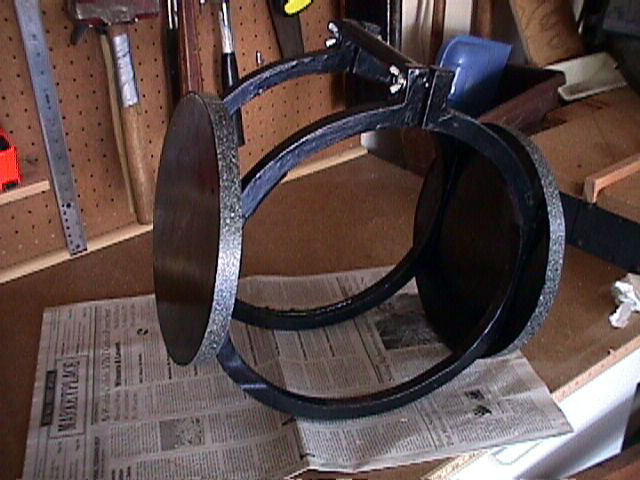

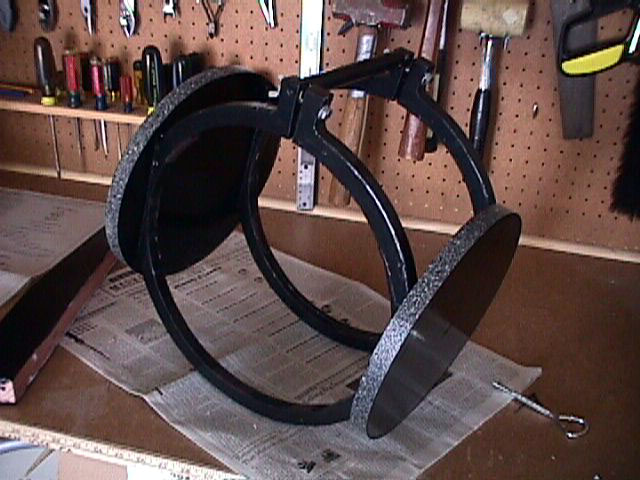

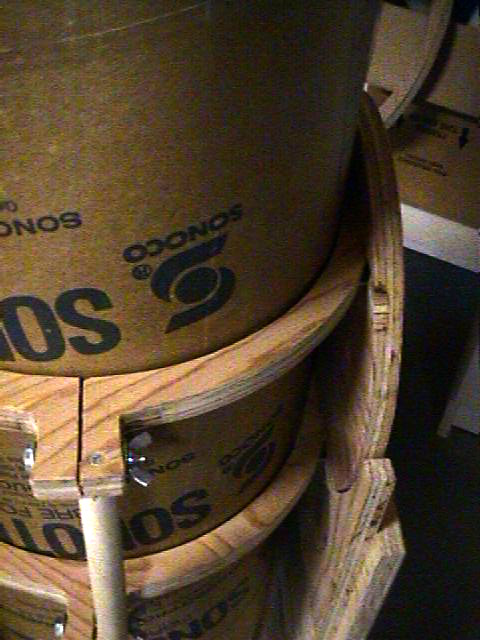

Altitude bearings and tube rings; lined with adhesive backed felt to protect the tuberings.jpg (73k)

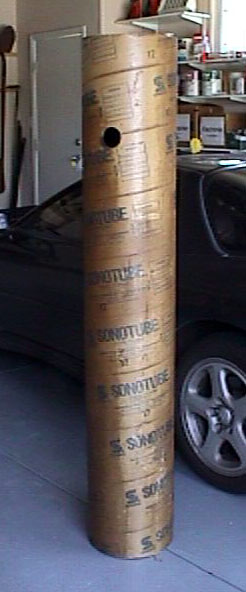

12" ID Sonotube 67" long (price: one 12-pack of Henry's; thanks, Ed :-)tube.jpg (34k)

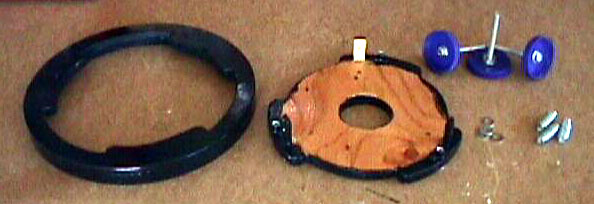

Bottom tube ring, mirror cell, collimation boltsimg/cellparts.jpg (36k)

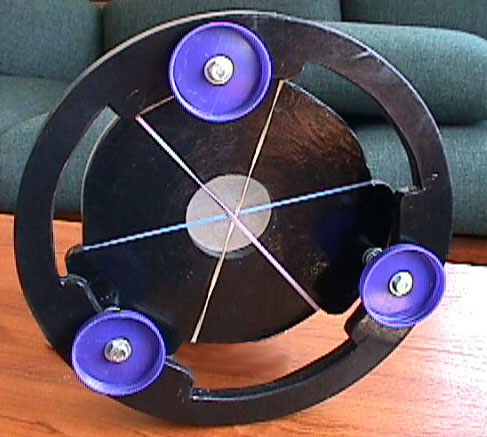

Assembled bottom tube ring and mirror cell; cell can be removed by taking out the bolts and rotating 60 degrees (rubber bands are temporary); fan will cover the holecellbottom.jpg (60k)

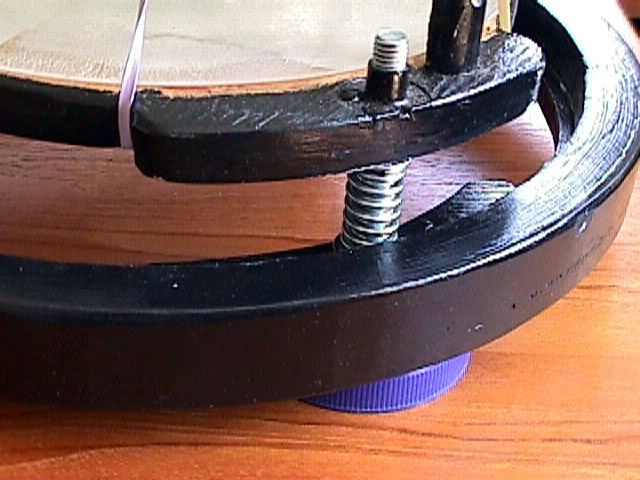

Collimation bolts have mayonaise jar tops on the heads and thread into T-nuts on the mirror cellcelldetail.jpg (69k)

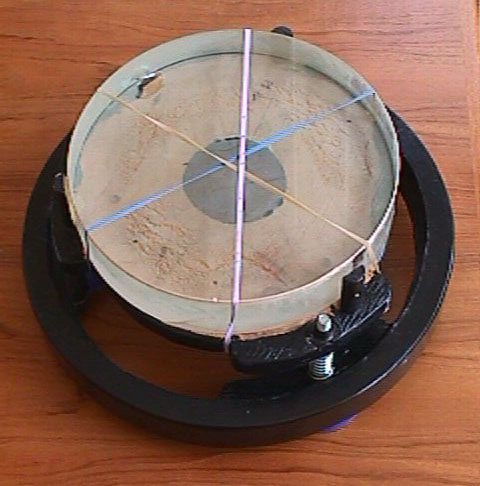

unaluminized mirror and top of cell; mirror will be attached with RTV on the bottom and the three postscelltop.jpg (53k)

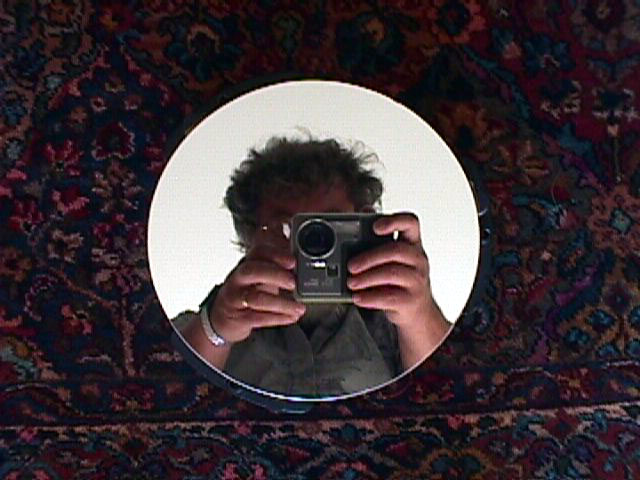

Coated Primaryitworks.jpg (68k)

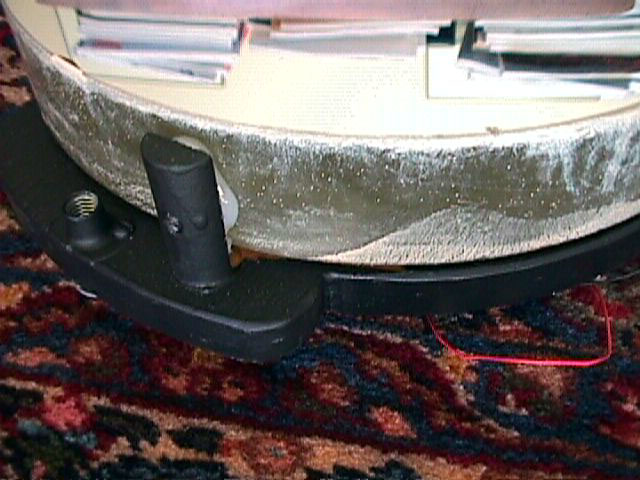

Mirror - Cell attachment. There are also three big blobs of silicone glue between the back of the mirror and the cellpost.jpg (73k)

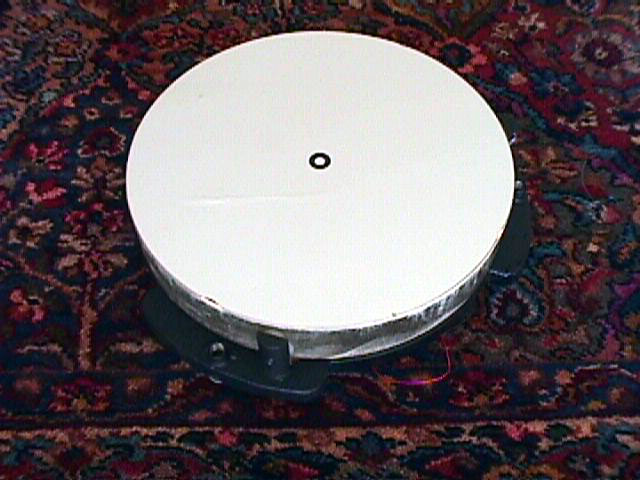

Collimation spot: a hole reinforcer painted black and carefully centeredspot.jpg (67k)

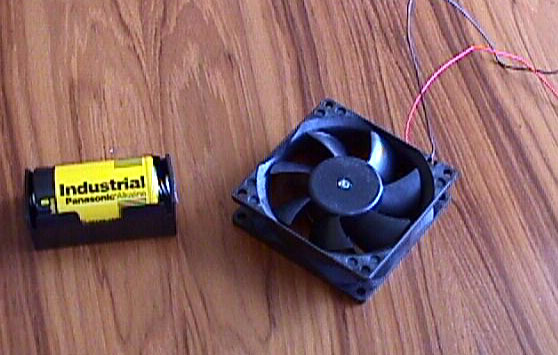

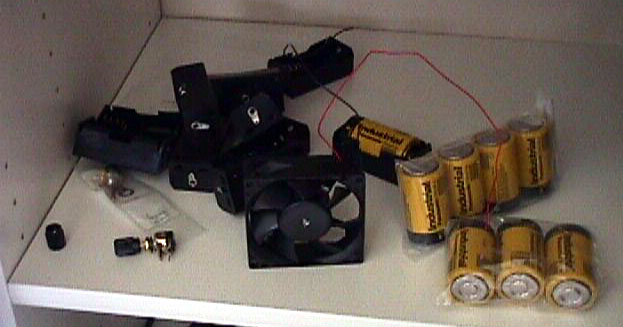

Nice quiet fan (to be installed on the back of the mirror cell)fan.jpg (55k)

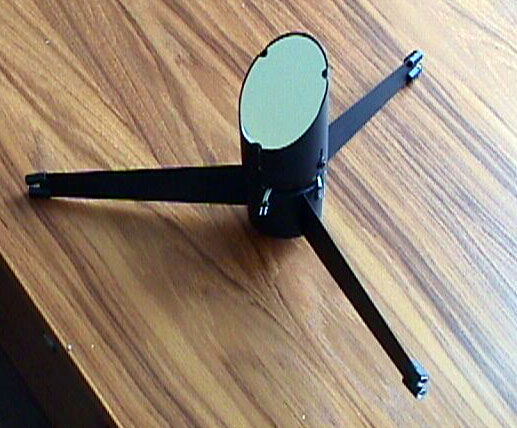

ProtoStar spider and holder with integrated dew heater; CEO1.30" secondary mirror (1/20 wave!)spider.jpg (65k)

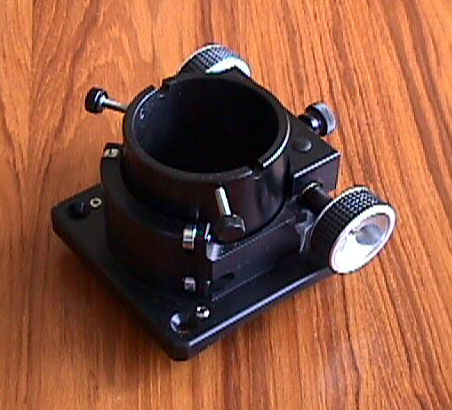

JMI NGF-DX1 2" dual speed Crayford focuser (not cheap and worth every penny!)focuser.jpg (53k)

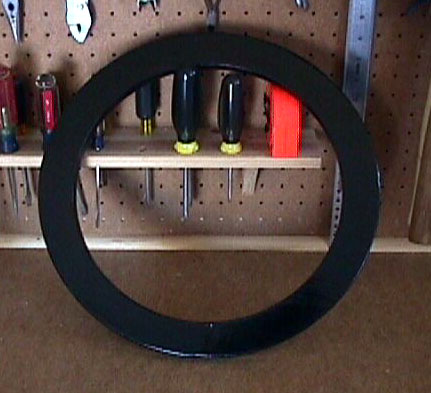

Top tube end ringtopring2.jpg (41k)

Bill Arnett; last updated: 2000 May 10
